Enclosures.
Engineered.
Cubicle enclosures, data & server racks and custom sheet metal fabrication in GI, MS and SS — welded or modular, wall or floor mounted, built to your drawing and application, not off a shelf.
Cubicle Enclosures & Sheet Metal, Built to Your Requirement.
Our Enclosures & Sheet Metal division manufactures wall and floor mounted cubicle enclosures, compartmentalized switchgear cubicles, data and server rack enclosures, and custom sheet metal components — in GI, MS and SS, welded or modular, built from a drawing, specification or sample rather than a fixed catalogue.
Every Product, in GI, MS or SS.
Material is selected against the application and environment — not defaulted to one. Indicative ranges below; exact specification is confirmed against your drawing or requirement.
Galvanized (zinc-coated) steel — corrosion-resistant, cost-effective, well suited to outdoor and semi-outdoor enclosures and general fabrication.
- Thickness range1.2 – 3.0mm
- Typical gradeIS 277 GSM 120–275
- FinishMill / powder coat over primer
- Best suited toOutdoor, corrosive-adjacent
Mild steel — the standard for indoor cubicles, panels and structural fabrication where strength and cost efficiency matter most.
- Thickness range1.2 – 3.0mm
- Typical gradeIS 513 CR / HR
- FinishPowder coated, RAL on request
- Best suited toIndoor panels, structural parts
Stainless steel 304 and 316L — for corrosive, washdown, hygienic or high-durability environments where GI/MS finishes aren't sufficient.
- Thickness range1.0 – 3.0mm
- Typical gradeSS 304 / SS 316L
- Finish2B / No.4 brushed / mirror
- Best suited toCoastal, chemical, hygienic areas
Seven Product Lines.
One Manufacturing Base.

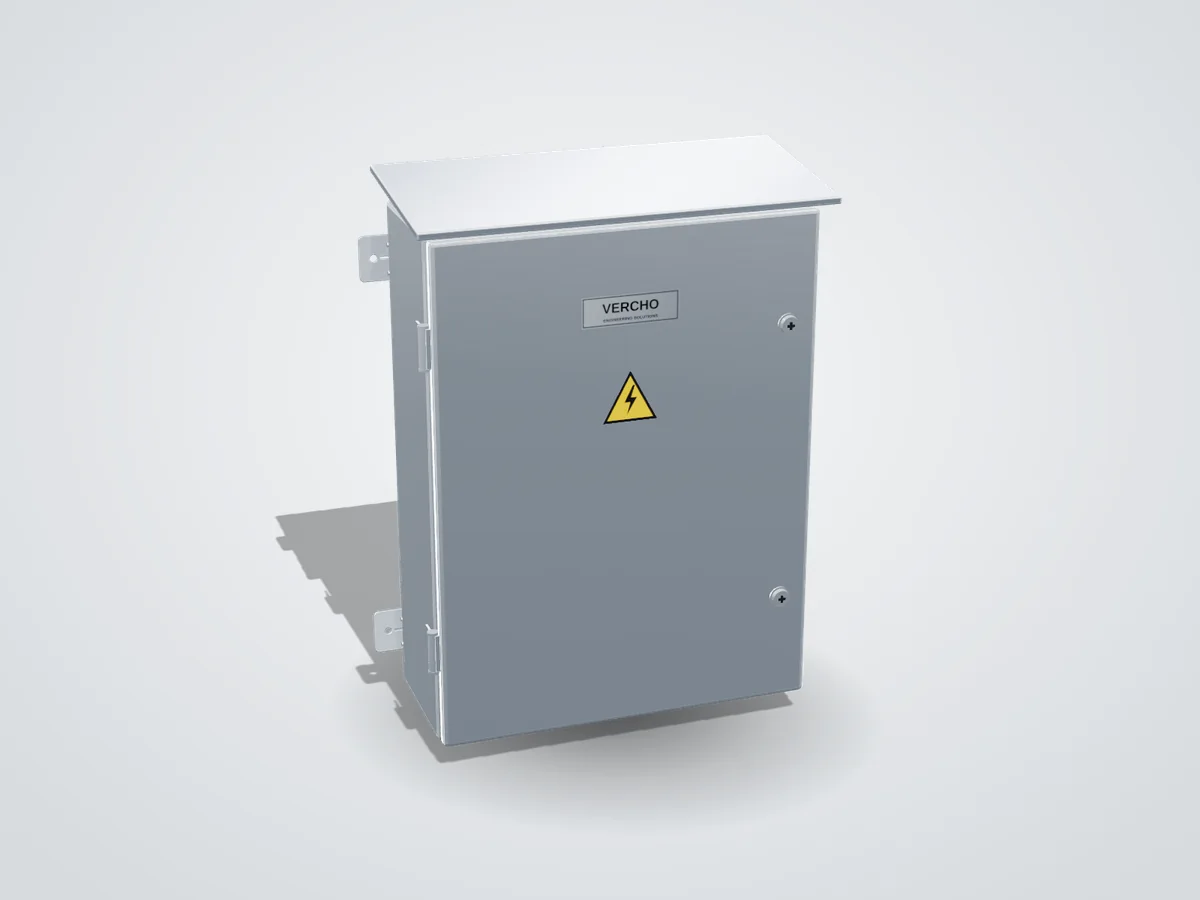

Cubicle Non‑Compartmentalized Enclosure — Wall Mounted
Single-chamber wall/surface mounted cubicle for metering, feeder, junction and small control applications where internal segregation isn't required.
- IP RatingIP54 std, IP65 optional
- Thickness1.2 – 2.0mm
- MountingWall / surface, bracket
- ReferenceIS 8623 / IEC 62208

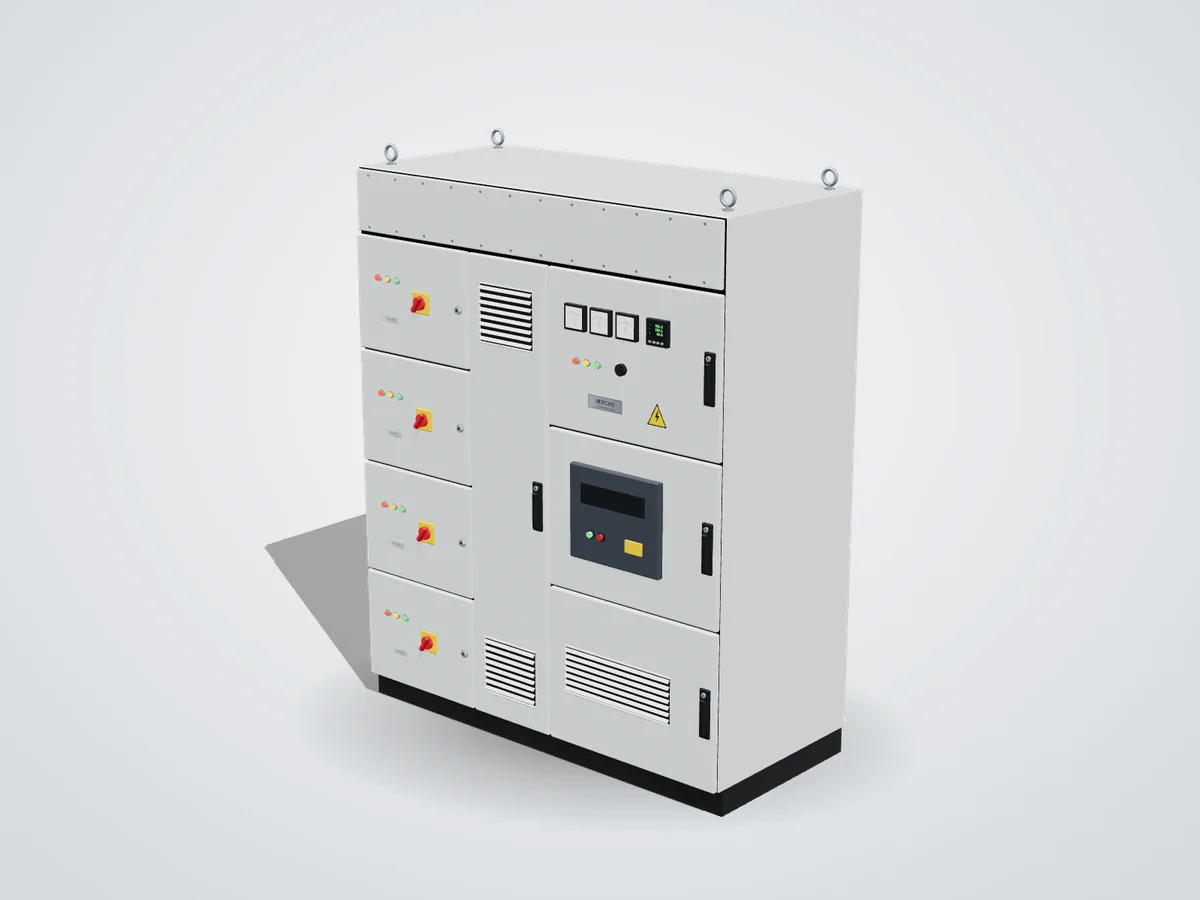

Cubicle Compartmentalized Enclosure
Internally partitioned cubicle separating busbar, cable and breaker compartments — for LT panels, PCC/MCC and switchgear requiring form segregation.
- IP RatingIP42 indoor, IP55 outdoor
- Thickness1.6 – 3.0mm
- SegregationForm 2b / 3b / 4b
- ReferenceIEC 61439

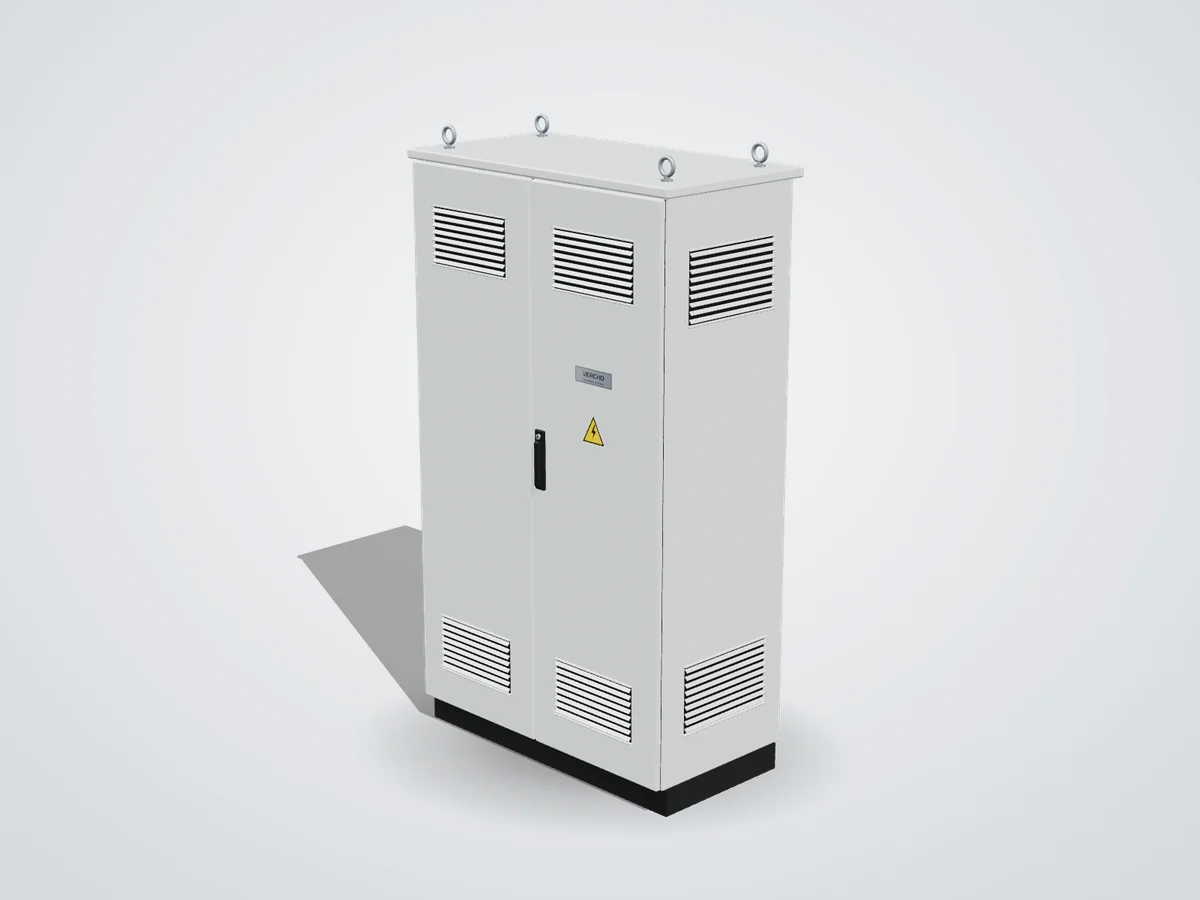

Cubicle Non‑Compartmentalized Enclosure — Floor Mounted
Free-standing single or multi-tier cubicle on a floor channel base — for distribution boards, capacitor banks and floor-standing control panels.
- IP RatingIP42 – IP55
- Thickness1.6 – 3.0mm
- BaseFloor channel, leveling feet
- ReferenceIS 8623 / IEC 62208

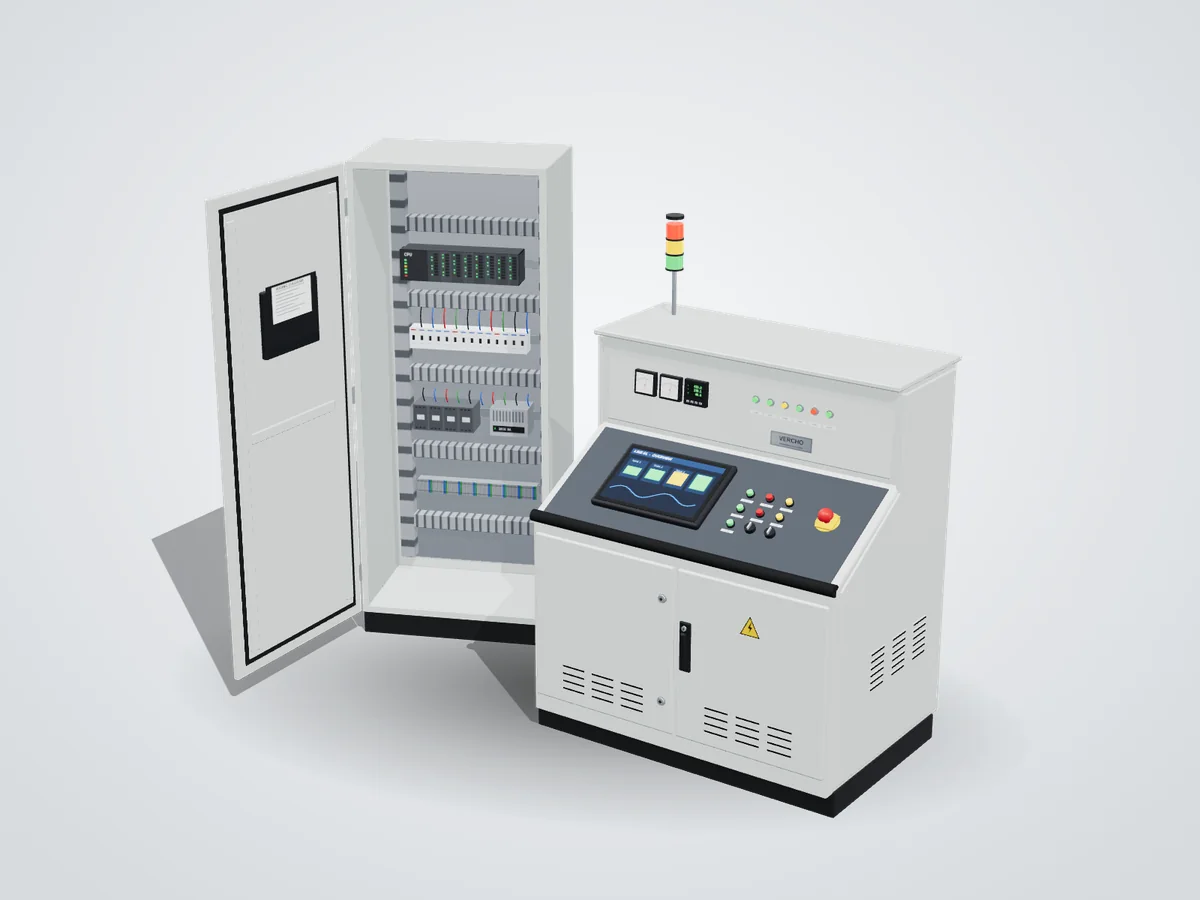

Customized Enclosure
Any dimension, cut-out, gland plate, gasket, mounting or finish — built from your CAD file, drawing, sample or dimensional sketch, prototype to production volume.
- Thickness1.0 – 3.0mm
- Inputs acceptedCAD, PDF, sample, sketch
- FinishPowder coat, plate, passivate
- MOQPrototype onward

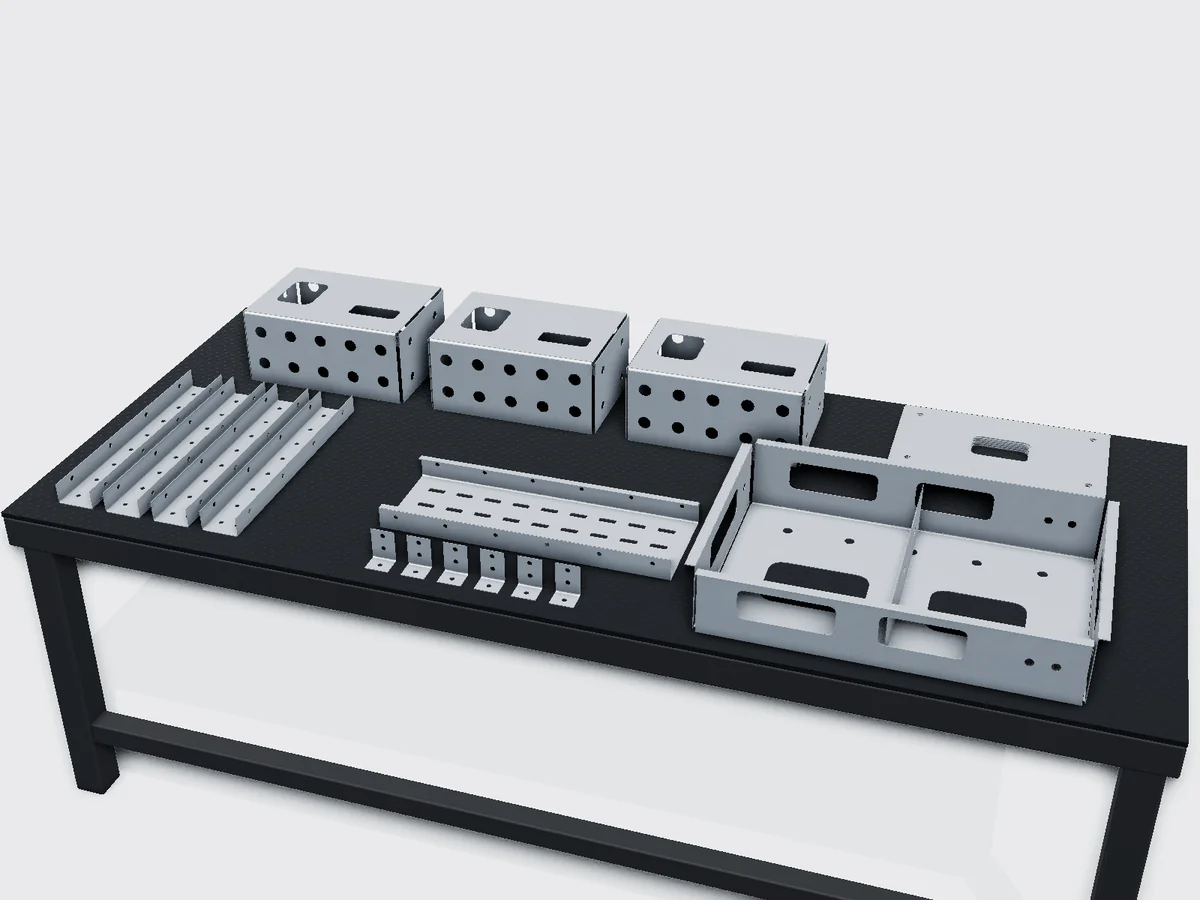

Sheet Metal Fabrication
Laser cutting, CNC punching, press-brake forming, welding and finishing for brackets, panels, covers, chassis, trays and structural sheet metal components.
- Tolerance±0.1mm typical
- Thickness0.6 – 6.0mm
- ProcessesLaser, punch, brake, weld
- FinishDeburr, coat, plate, passivate

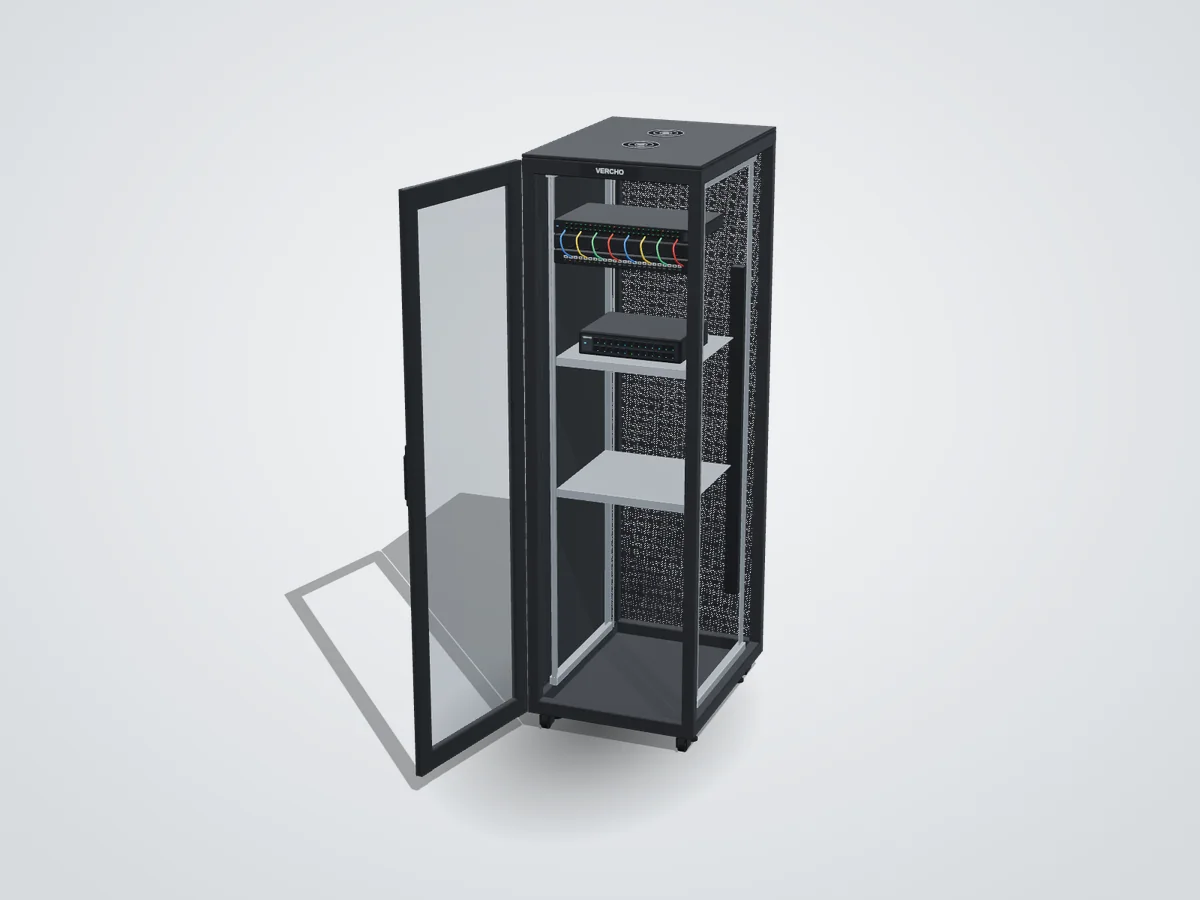

Data Rack Enclosure
Standard 19″ EIA data racks for networking and IT equipment — perforated or solid doors, adjustable rails, cable management and castor/leveling feet.
- Sizes6U – 42U
- Thickness1.2 – 2.0mm
- DoorsPerforated / vented / glass
- LoadUp to ~500kg static

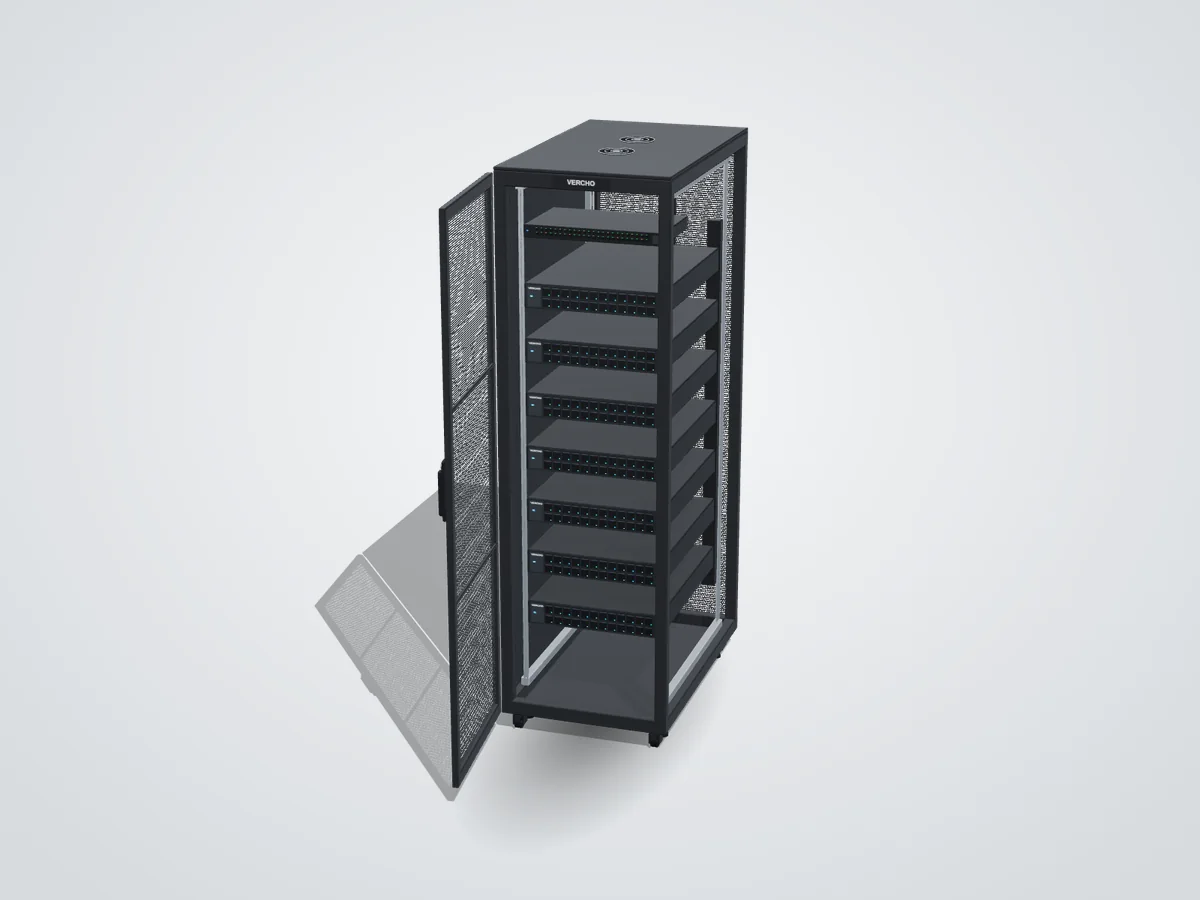

Server Rack Enclosure
Heavier-gauge 19″ server racks with lockable front/rear/side panels, fan/PDU mounting provisions, cable channels and higher static load rating.
- Sizes27U, 32U, 37U, 42U, 45U, custom
- Thickness1.5 – 2.5mm
- SecurityLockable panels, all sides
- LoadUp to ~800–1000kg static
Specifications above are indicative, based on common industry practice for each product category, and are confirmed against your specific drawing, standard and application before manufacturing.
Welded or Modular.
Continuous MIG/TIG welded seams, ground flush, for a rigid, single-piece structure with a continuous weatherproof joint.
- Higher structural rigidity
- Continuous, weatherproof seams
- Suited to outdoor / high-IP / heavily loaded enclosures
- Fixed configuration once built
Bolted panel-and-frame construction assembled from standardized sections, gasketed at joints for sealing without welding.
- Faster lead time, easier transport
- Reconfigurable and extendable on site
- Simplifies future maintenance access
- Suited to indoor cubicles and racks
Engineering Before Manufacturing
Every enclosure requirement has its own combination of dimensions, materials, IP rating and mounting. Our approach is therefore simple.
From Coil to Crate
The same core sequence builds both welded and modular enclosures — welding is added for continuous, weatherproof seams; modular units are bolted and gasketed at the finish stage instead.
Eight Reasons This
Isn't Off-the-Shelf.
We approach every enclosure requirement with an engineering mindset — IP rating, material, construction and fitment, in that order.
We work from customer-specific drawings, dimensions, specifications and samples — not a fixed catalogue of sizes.
Both construction methods available under one roof, so the method matches the application, not the other way around.
GI, MS and SS capability lets us select material according to environment and exposure — not default to one.
±0.1mm typical tolerance on laser, punch and press-brake work, order after order.
Cubicles, data racks, server racks and custom sheet metal — all within one integrated manufacturing ecosystem.
Quality begins with understanding the requirement and continues through material, fabrication, assembly and final inspection.
Reliable products, responsive communication and consistent manufacturing — built for repeat business, not one order.
Built for Industry.
Adapted to the Application.
Your Drawing.
Your Requirement.
Not every requirement fits an off-the-shelf enclosure. Approach us with an engineering drawing, CAD file, PDF, 3D model, physical sample, dimensional sketch or simply an application requirement — we'll work with custom dimensions, material, sheet thickness, IP rating, cut-outs, mounting and finish.
An enclosure is more than a box.
A cubicle is more than a cabinet.
A rack is more than a frame.
Sheet metal is more than a flat pattern.
We don't just make enclosures.
We build parts of industrial solutions.
Built With Quality.
Verified For Performance.
Across cubicle enclosures, data and server racks, and sheet metal fabrication, we focus on material quality, dimensional accuracy, sealing, fitment and finish. Quality is built into our manufacturing process — not added at the end.
:2015
Compliant
Request a Quote.
Share your drawing, specification, sample, dimensions or application details — we'll review the requirement and come back with a practical manufacturing solution within one business day.
